Dimensions
BIOZENT diameter : 9.7 – 20 mm
BIOZENT length : 10 – 20 cm
Assembly time : 5 – 10 min
Translation stage
Manual stage range : 3 mm
Manual stage resolution : 10 – 15 µm
Motorized stage range : 6 mm
Motorized stage resolution : 1 nm
BIOZENT
Price range: 2500 € through 17500 €

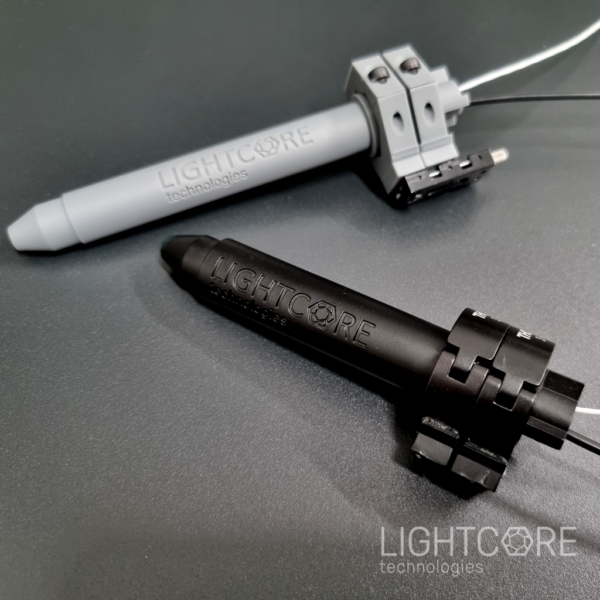

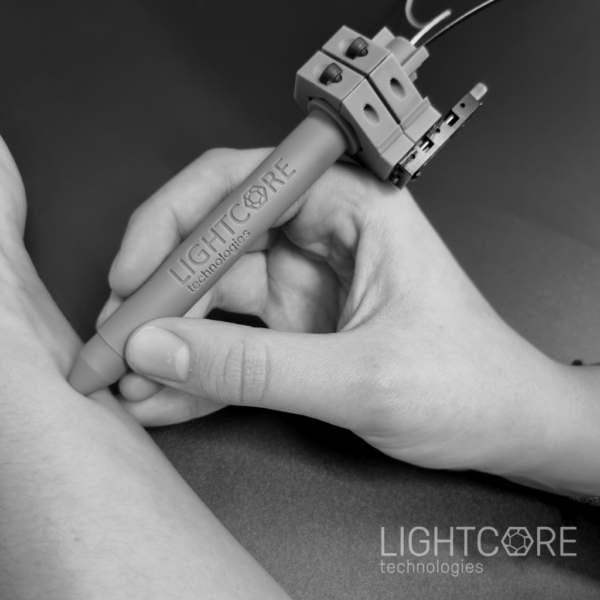

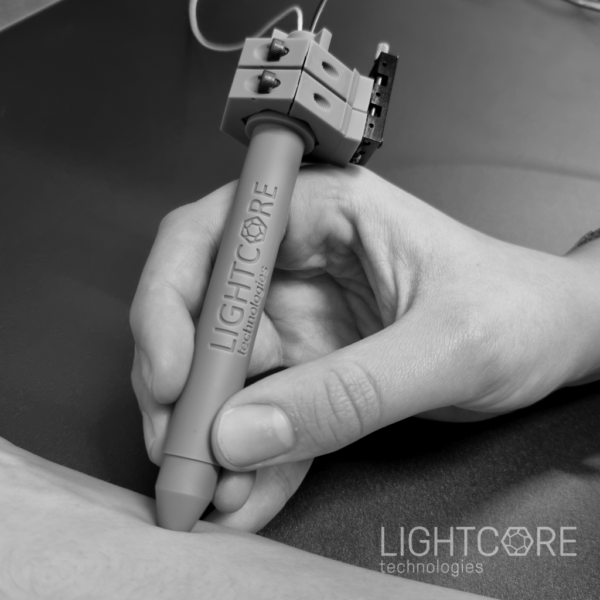

A handheld adaptation of the InSplorer endoscope, the BIO-compatible Z-scan ENdoscopic Tool (BIOZENT) includes an integrated translation stage for easy depth adjustment and 3D scanning. Optional motorized control provides additional convenience, making it a versatile tool for manual imaging applications.
| z translation | Manual stage, Motorized stage (basic), Motorized stage (advanced) |
|---|
