Properties
Fiber optical properties : see FemtoGuide fiber, GRIN functionalization, and double cladding

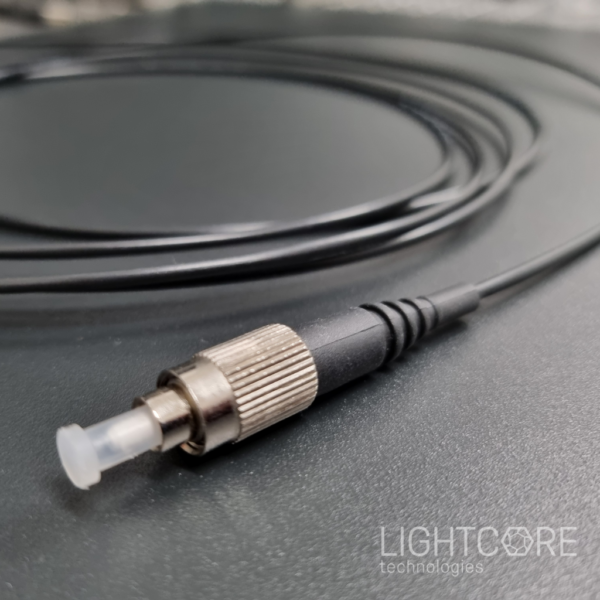

Endoscope proximal connection : FC/PC connector
Flexible length : 2 – 5 m

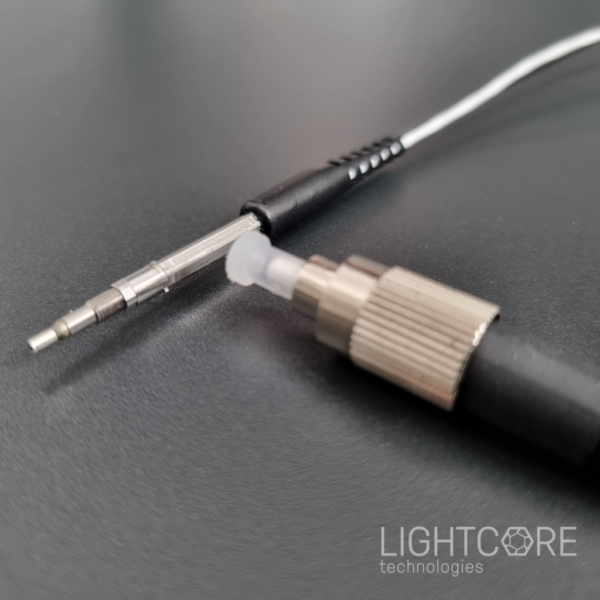

Head rigid length : 40 – 60 mm
Head external diameter : 2 – 3.5 mm
Imaging properties
Field of view (FoV) : 50-600 µm
Working distance (WD) : 200-600 µm
Acquisition rate : 1 – 10 IPS
Modalities : 2PEF, SHG, CARS, 3PEF, THG
CARS, 3PEF, and THG modalities are currently only achievable using outside laser sources. Integrated source will be available soon.
Micro-lenses objective option
Magnification : 0.63
Numerical aperture : 0.45
Maximum FoV : 600
Maximum WD : 600
GRIN objective option
Magnification : 0.22
Numerical aperture : 0.7
Maximum FoV : 250
Maximum WD : 300
If you require more options, contact us to discuss your project !
